ディーゼルエンジン用コンプレッションテスター用アダプター
アダプター表
L型アダプター
エンジンルーム内が狭いなどの理由でテスターが接続しにくい場合、 アダプターとテスターの間に取り付けて使用します。
ノズルホルダー用
| アダプター 型式 | エンジン型式 | メーカー |
|---|---|---|
| F-1 | KE-35, KE-36, KE-41, KE-63 | 三菱 |
| F-2 | 6DB1, 6DS1, 6DS10A | |
| F-3 | 6D11, 6DB10C, 6DS50C, 6DS70C | |
| F-4 | 4DQ, 4DR5, 4DR51 | |
| F-5 | 8DC2 | |
| F-6 | 6D14, 8DC4, 8DC6, 8DC20, 8DC60C | |
| F-7 | 8DC70, 8DC8 | |
| F-8 | 6D16, 6D20, 6D22, 6D24, 8DC7, 8DC8 | |
| F-9 | ||
| F-10 | 6DB（低床式） | |
| F-11 | 4D30, 4D31, 4D32, 4D33, 4D34, 4D35, 4D36 | |
| F-12 | 4D31C | |
| F-13 | 6M70, 6D40, 8M20, 8M21, 8M22 | |
| F-14 | 6D15, 6D16, 6D17, 6M60, 6M61 | |
| F-15 | 4M50, 4M51 | |
| HI-1 | DA120, DA220, DA640, DH100, E110 | ｲｽｽﾞ |
| I-2 | C330, D400, D500, 6AB1 | |
| I-3 | C221, C240, 2AB1 | |
| I-4 | E120, 6RA1 | |
| I-5 | 4BA1, 4BC1, 4BD1, 6BA1, 6BB1, 6BD1, 6DB11, 6WA1, 6WG1 | |
| I-6 | D920, 6B-1 | |
| I-7 | 8PA1, 8PB1, 8PC1N, 10PA1, 10PB1, 12PA1 | |
| I-8 | 8MA1 | |
| I-9 | 4EC1, 4FB1, 4FC1, 4FD1 | |
| I-10 | 4BE1, 4HF1, 4HG1 | |
| I-11 | 4HF1 | |
| I-12 | 6BG1, 6BF1 | |
| I-13 | 4EF1, 4FC1, 4FG1, 4JG2, 4EE1 | |
| I-14 | 4HF1, 4HG1 | |
| I-15 | 8PD1, 8PE1, 10PD1, 10PE1 | |
| IN-1 | C170 | |
| SD22, SD23, SD25, SD33 | 日産 | |
| TH-1 | 2D | ﾄﾖﾀ |
| T-1 | ||
| T-2 | B, J, 2J | |
| T-3 | 1W（フランジ式） | |
| T-4 | 1Z, 11B, 12HT, 13B, 14B, 15B | |
| T-5 | 1C, 1KD, 1KZ, 2L, 3L, 4B, 5L | |
| WL | ﾏﾂﾀﾞ | |
| 4D55, 4D56, 4D65, 4M40 | 三菱 | |
| T-6 | 1W（ツメ式） | ﾄﾖﾀ |
| T-7 | B, 2B, 3B, 2H, 1HD-T, 1HZ, 1PZ | |
| T-8 | 2Z | |
| N-1 | UD | 日産 |
| N-2 | PD8T, PE10T, ND6 | |
| N-3 | ED6, ED30, ED33, CD17, CD20, RD28 | |
| N-4 | SD20 | |
| N-5 | FD6, FD33, RE10 | |
| 4BB1 | ｲｽｽﾞ | |
| N-6 | CYターボ | Ｖ．Ｗ |
| N-7 | TD27, TD42, QD32 | 日産 |
| N-8 | BD30, FD42, FD46 | |
| N-9 | NF6, PF6, PN6, RE8, RF8, RG8 | |
| N-10 | FE6B, FE6E |
ページの先頭へ

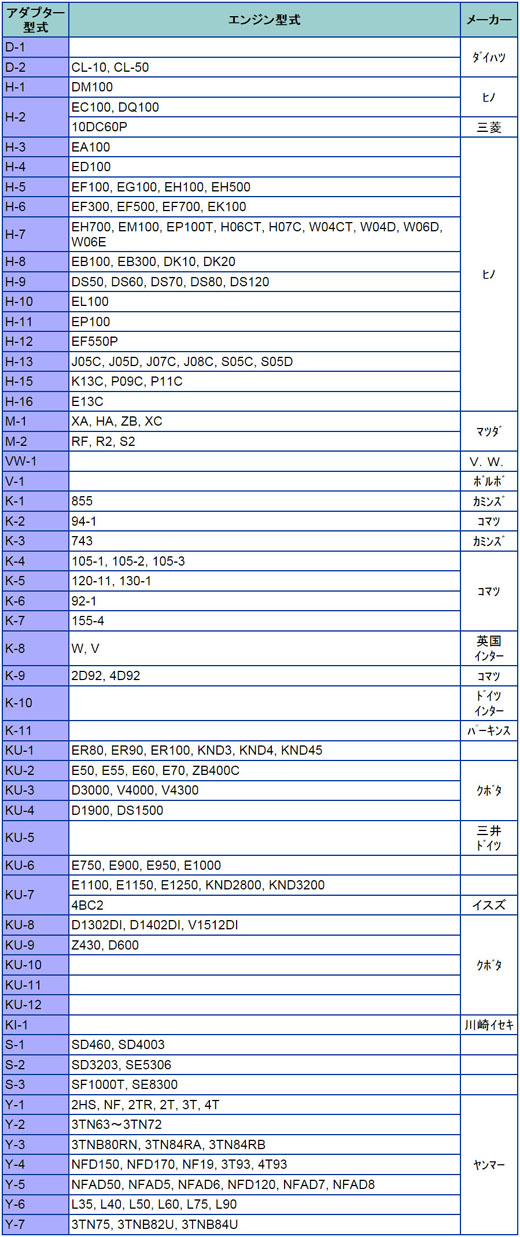

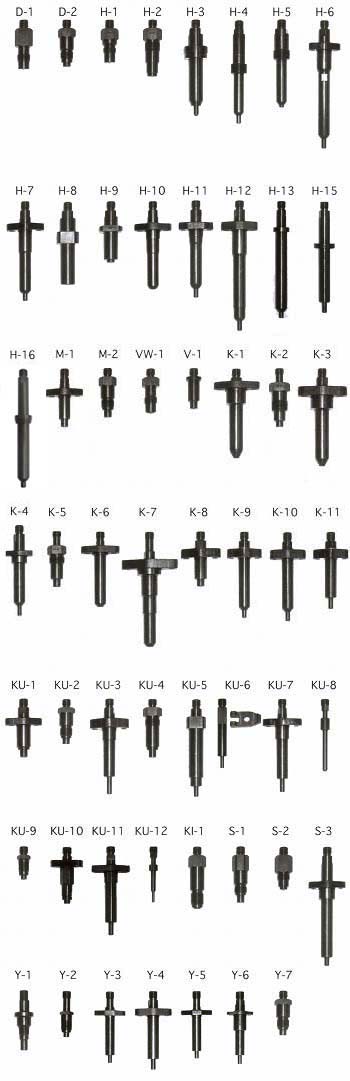

ノズルホルダー用
| アダプター 型式 | エンジン型式 | メーカー |
|---|---|---|
| D-1 | ﾀﾞｲﾊﾂ | |
| D-2 | CL-10, CL-50 | |
| H-1 | DM100 | ﾋﾉ |
| H-2 | EC100, DQ100 | |
| 10DC60P | 三菱 | |
| H-3 | EA100 | ﾋﾉ |
| H-4 | ED100 | |
| H-5 | EF100, EG100, EH100, EH500 | |
| H-6 | EF300, EF500, EF700, EK100 | |
| H-7 | EH700, EM100, EP100T, H06CT, H07C, W04CT, W04D, W06D, W06E |
|
| H-8 | EB100, EB300, DK10, DK20 | |
| H-9 | DS50, DS60, DS70, DS80, DS120 | |
| H-10 | EL100 | |
| H-11 | EP100 | |
| H-12 | EF550P | |
| H-13 | J05C, J05D, J07C, J08C, S05C, S05D | |
| H-15 | K13C, P09C, P11C | |
| M-1 | XA, HA, ZB, XC | ﾏﾂﾀﾞ |
| M-2 | RF, R2, S2 | |
| VW-1 | Ｖ．Ｗ． | |
| V-1 | ﾎﾞﾙﾎﾞ | |
| K-1 | 855 | ｶﾐﾝｽﾞ |
| K-2 | 94-1 | ｺﾏﾂ |
| K-3 | 743 | ｶﾐﾝｽﾞ |
| K-4 | 105-1, 105-2, 105-3 | ｺﾏﾂ |
| K-5 | 120-11, 130-1 | |
| K-6 | 92-1 | |
| K-7 | 155-4 | |
| K-8 | W, V | 英国 ｲﾝﾀｰ |
| K-9 | 2D92, 4D92 | ｺﾏﾂ |
| K-10 | ﾄﾞｲﾂ ｲﾝﾀｰ |
|
| K-11 | ﾊﾟｰｷﾝｽ | |
| KU-1 | ER80, ER90, ER100, KND3, KND4, KND45 | |
| KU-2 | E50, E55, E60, E70, ZB400C | ｸﾎﾞﾀ |
| KU-3 | D3000, V4000, V4300 | |
| KU-4 | D1900, DS1500 | |
| KU-5 | 三井 ﾄﾞｲﾂ |
|
| KU-6 | E750, E900, E950, E1000 | |
| KU-7 | E1100, E1150, E1250, KND2800, KND3200 | |
| 4BC2 | イスズ | |
| KU-8 | D1302DI, D1402DI, V1512DI | ｸﾎﾞﾀ |
| KU-9 | Z430, D600 | |
| KU-10 | ||
| KU-11 | ||
| KU-12 | ||
| KI-1 | 川崎ｲｾｷ | |
| S-1 | SD460, SD4003 | |
| S-2 | SD3203, SE5306 | |
| S-3 | SF1000T, SE8300 | |
| Y-1 | 2HS, NF, 2TR, 2T, 3T, 4T | ﾔﾝﾏｰ |
| Y-2 | 3TN63～3TN72 | |
| Y-3 | 3TNB80RN, 3TN84RA, 3TN84RB | |
| Y-4 | NFD150, NFD170, NF19, 3T93, 4T93 | |
| Y-5 | NFAD50, NFAD5, NFAD6, NFD120, NFAD7, NFAD8 | |
| Y-6 | L35, L40, L50, L60, L75, L90 | |
| Y-7 | 3TN75, 3TNB82U, 3TNB84U |
ページの先頭へ

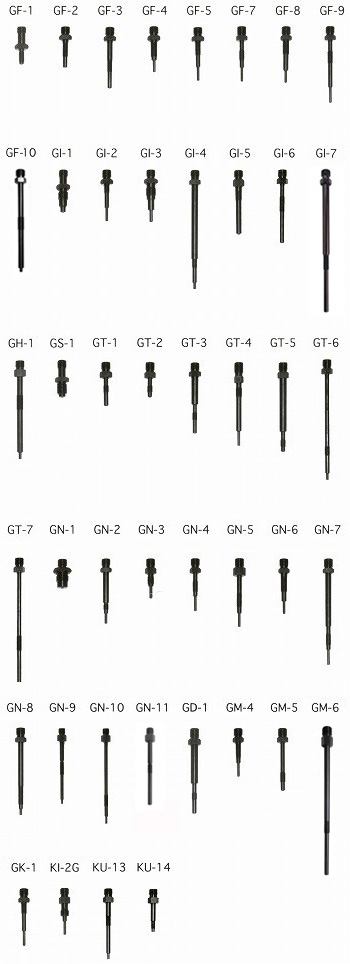

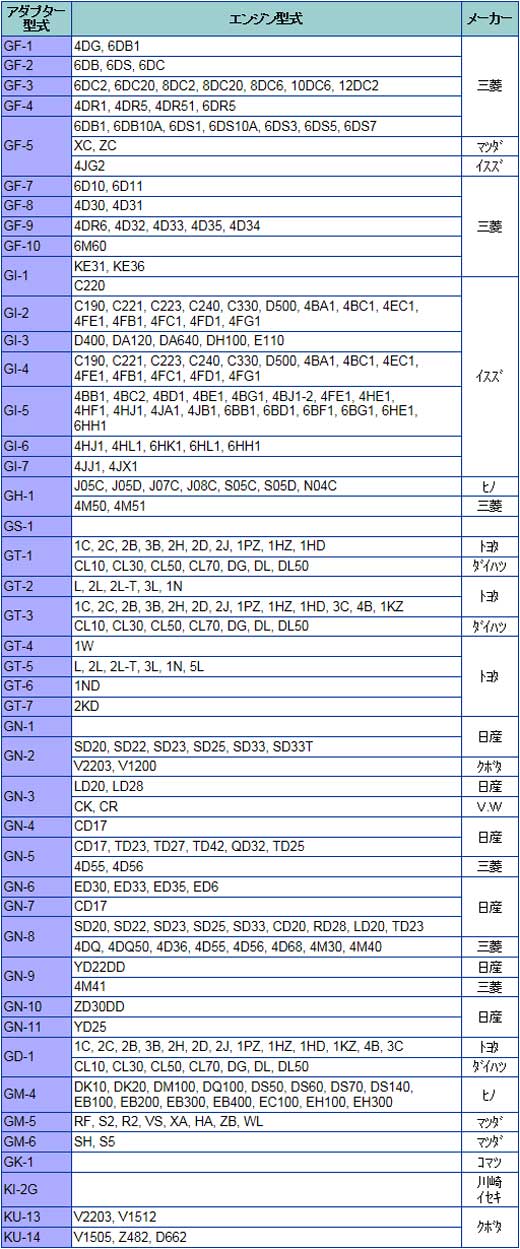

グロープラグ用
| アダプター 型式 | エンジン型式 | メーカー |
|---|---|---|
| GF-1 | 4DG, 6DB1 | 三菱 |
| GF-2 | 6DB, 6DS, 6DC | |
| GF-3 | 6DC2, 6DC20, 8DC2, 8DC20, 8DC6, 10DC6, 12DC2 | |
| GF-4 | 4DR1, 4DR5, 4DR51, 6DR5 | |
| GF-5 | 6DB1, 6DB10A, 6DS1, 6DS10A, 6DS3, 6DS5, 6DS7 | |
| XC, ZC | ﾏﾂﾀﾞ | |
| 4JG2 | ｲｽｽﾞ | |
| GF-7 | 6D10, 6D11 | 三菱 |
| GF-8 | 4D30, 4D31 | |
| GF-9 | 4DR6, 4D32, 4D33, 4D35, 4D34 | |
| GI-1 | KE31, KE36 | |
| C220 | ｲｽｽﾞ | |
| GI-2 | C190, C221, C223, C240, C330, D500, 4BA1, 4BC1, 4EC1, 4FE1, 4FB1, 4FC1, 4FD1, 4FG1 |
|
| GI-3 | D400, DA120, DA640, DH100, E110 | |
| GI-4 | C190, C221, C223, C240, C330, D500, 4BA1, 4BC1, 4EC1, 4FE1, 4FB1, 4FC1, 4FD1, 4FG1 |
|
| GI-5 | 4BB1, 4BC2, 4BD1, 4BE1, 4BG1, 4BJ1-2, 4FE1, 4HE1, 4HF1, 4HJ1, 4JA1, 4JB1, 6BB1, 6BD1, 6BF1, 6BG1, 6HE1, 6HH1 |
|
| GI-6 | 4HJ1, 4HL1, 6HK1, 6HL1, 6HH1 | |
| GH-1 | J05C, J05D, J07C, J08C, S05C, S05D, N04C | ﾋﾉ |
| 4M50, 4M51 | 三菱 | |
| GS-1 | ||
| GT-1 | 1C, 2C, 2B, 3B, 2H, 2D, 2J, 1PZ, 1HZ, 1HD | ﾄﾖﾀ |
| CL10, CL30, CL50, CL70, DG, DL, DL50 | ﾀﾞｲﾊﾂ | |
| GT-2 | L, 2L, 2L-T, 3L, 1N | ﾄﾖﾀ |
| GT-3 | 1C, 2C, 2B, 3B, 2H, 2D, 2J, 1PZ, 1HZ, 1HD, 3C, 4B, 1KZ | |
| CL10, CL30, CL50, CL70, DG, DL, DL50 | ﾀﾞｲﾊﾂ | |
| GT-4 | 1W | ﾄﾖﾀ |
| GT-5 | L, 2L, 2L-T, 3L, 1N, 5L | |
| GT-6 | 1ND | |
| GT-7 | 2KD | |
| GN-1 | 日産 | |
| GN-2 | SD20, SD22, SD23, SD25, SD33, SD33T | |
| V2203, V1200 | ｸﾎﾞﾀ | |
| GN-3 | LD20, LD28 | 日産 |
| CK, CR | Ｖ.Ｗ | |
| GN-4 | CD17 | 日産 |
| GN-5 | CD17, TD23, TD27, TD42, QD32, TD25 | |
| 4D55, 4D56 | 三菱 | |
| GN-6 | ED30, ED33, ED35, ED6 | 日産 |
| GN-7 | CD17 | |
| GN-8 | SD20, SD22, SD23, SD25, SD33, CD20, RD28, LD20, TD23 | |
| 4DQ, 4DQ50, 4D36, 4D55, 4D56, 4D68, 4M30, 4M40 | 三菱 | |
| GN-9 | YD22DD | 日産 |
| 4M41 | 三菱 | |
| GN-10 | ZD30DD | 日産 |
| GD-1 | 1C, 2C, 2B, 3B, 2H, 2D, 2J, 1PZ, 1HZ, 1HD, 1KZ, 4B, 3C | ﾄﾖﾀ |
| CL10, CL30, CL50, CL70, DG, DL, DL50 | ﾀﾞｲﾊﾂ | |
| GM-4 | DK10, DK20, DM100, DQ100, DS50, DS60, DS70, DS140, EB100, EB200, EB300, EB400, EC100, EH100, EH300 | ﾋﾉ |
| GM-5 | RF, S2, R2, VS, XA, HA, ZB, WL | ﾏﾂﾀﾞ |
| GK-1 | ｺﾏﾂ | |
| KI-2G | 川崎 ｲｾｷ |
|
| KU-13 | V2203, V1512 | ｸﾎﾞﾀ |
| KU-14 | V1505, Z482, D662 |
